Design and quotation scope of medical device clean room:

（1） 100000 level production area (20000 level laboratory) (sterile room, limit room, positive control room)

Project List:

1. Structure: Clean panels for partition walls and ceilings, meeting Class A fire protection requirements for at least 1 hour;

2. Doors and windows: steel purification finished doors and windows, door closers, interlocking devices

3. Stainless steel equipment: transfer window, self-cleaning transfer window, stainless steel ordinary wardrobe, disinfection wardrobe, stainless steel shoe stool, sink, etc

4. Electrical appliances: 220V lighting, sockets, switches, wires and cables

5. HVAC: Heating and ventilation pipes, insulation, air supply outlets, valves, return air accessories, etc

6. Air conditioning equipment: Air conditioning equipment and pipeline connections (copper pipe or water system air conditioning, self-control system)

7. Power cables: (power cables required for clean room equipment, power cabinets, etc.), as well as power supply for production equipment

8. Floor: PVC floor or epoxy colored sand floor, or other floor with special requirements

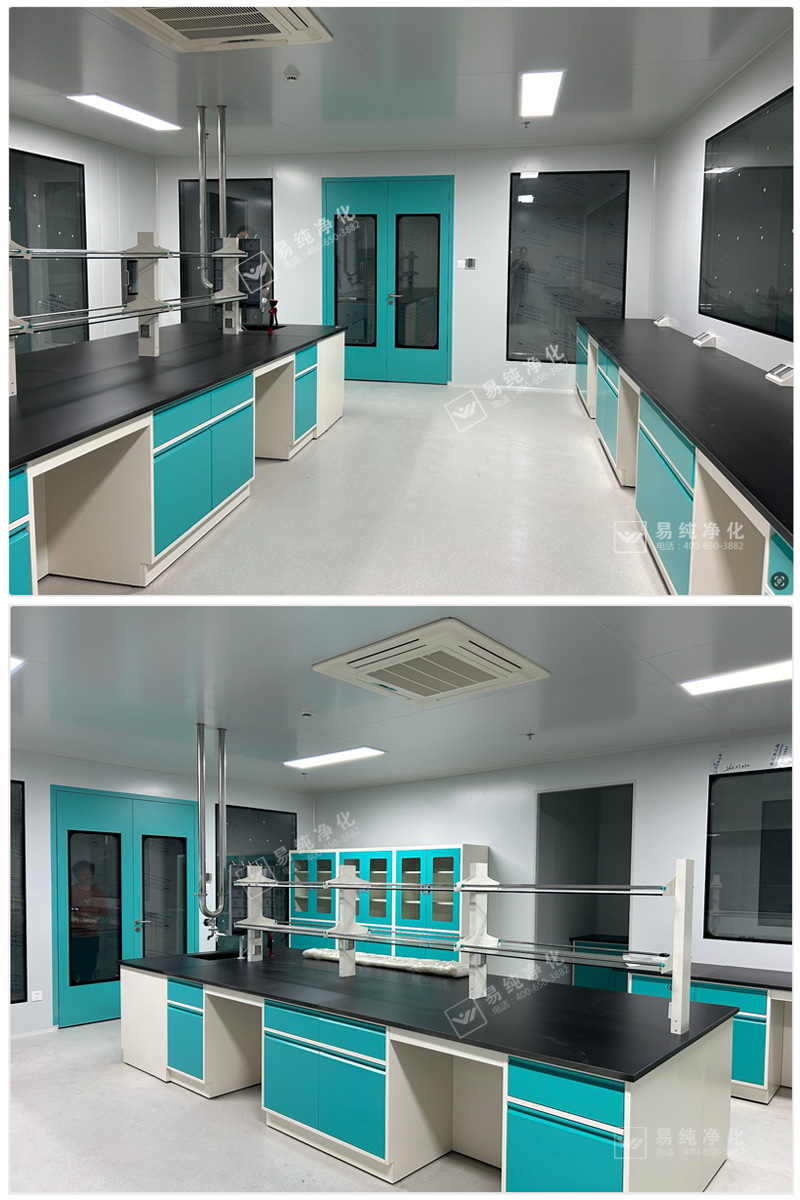

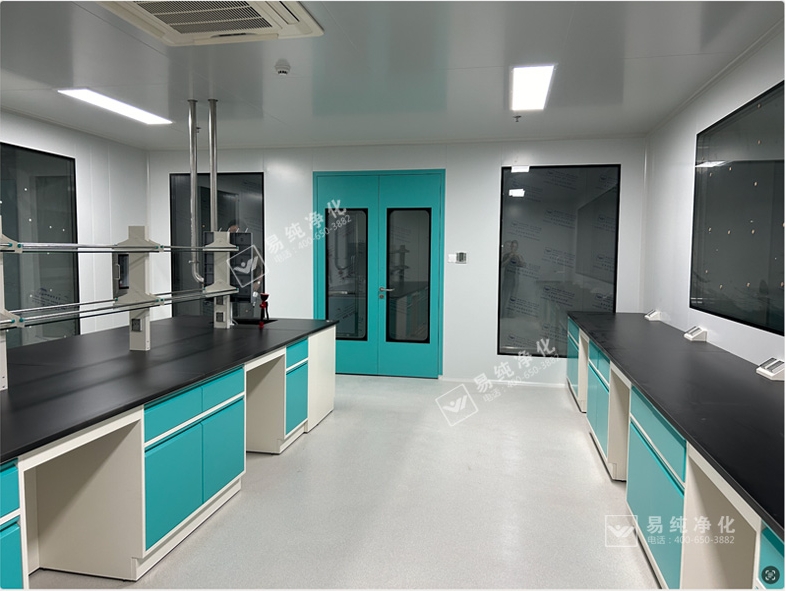

9. Central laboratory bench, side bench, sample cabinet, ultra clean workbench, biosafety cabinet, fume hood, etc

10. Purified water: Installation and commissioning of secondary reverse osmosis purified water equipment and 304 or 316L stainless steel pipeline system

11. Air compressor, stainless steel pipeline or PPR pipeline (electricity consumption and gas consumption point location need to be provided by the owner)

12. Computer room: materials for partition walls, ceilings, and Class A fire doors that meet fire safety requirements and last for more than 2 hours

13. Inlet and outlet parts: purified water unit, air conditioning unit inlet and outlet floor drains, and other water point drainage facilities;

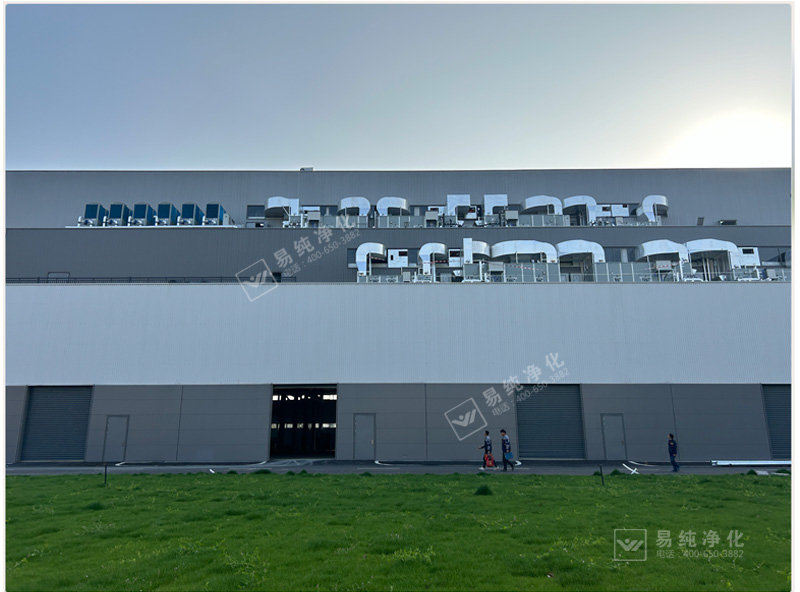

The following is an 8000 square meter medical device clean room completed by Yichun Purification in 2024, with real-life photos shared!

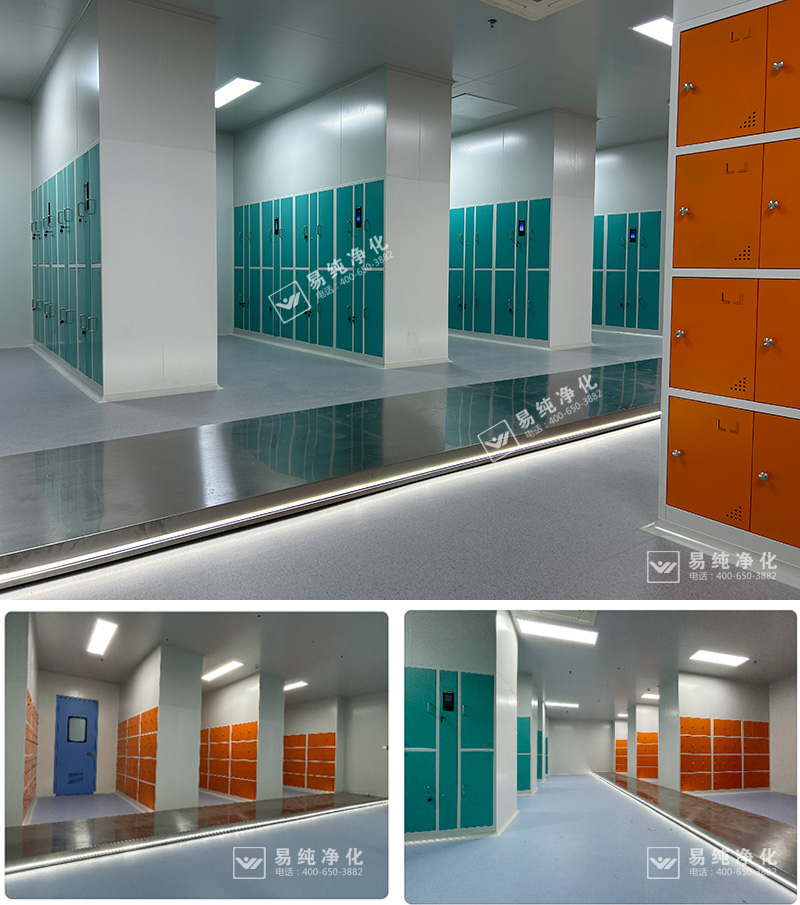

一、Dressing room section

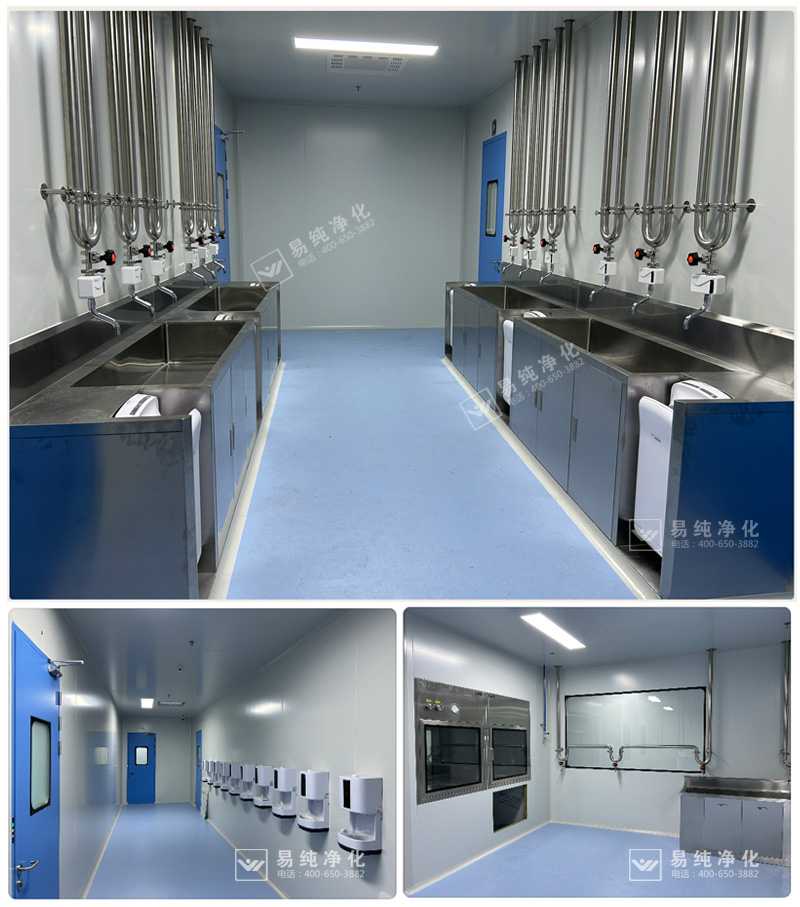

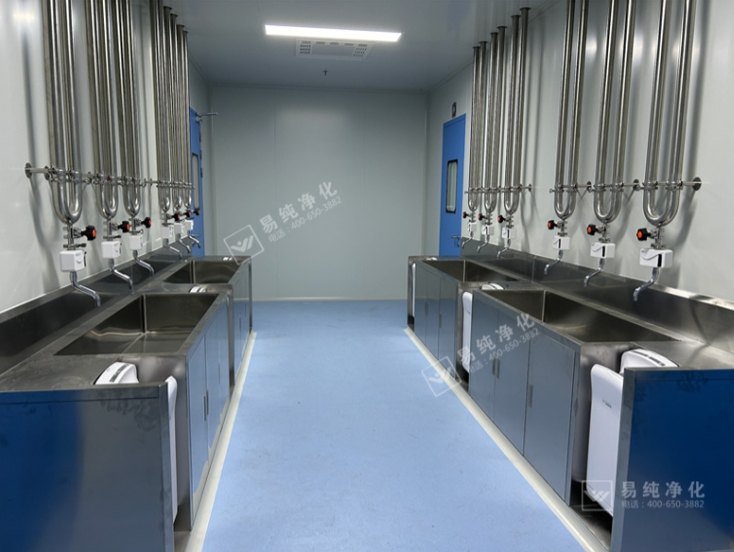

二、Hand washing, disinfection, and cleaning section

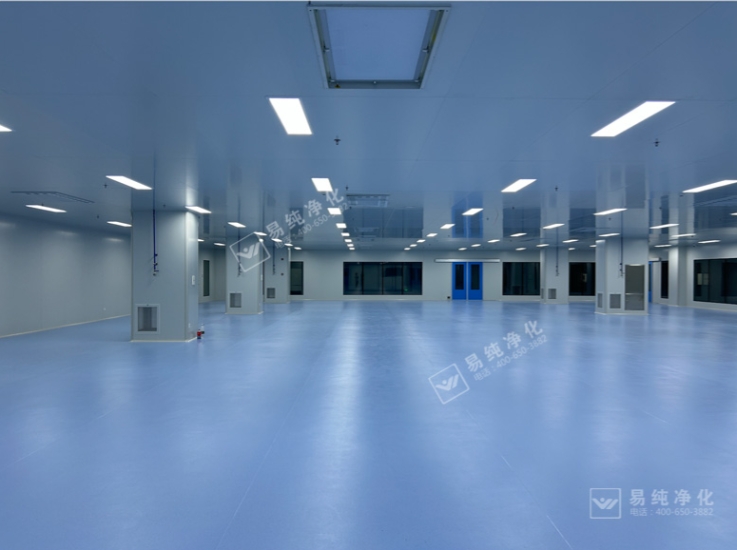

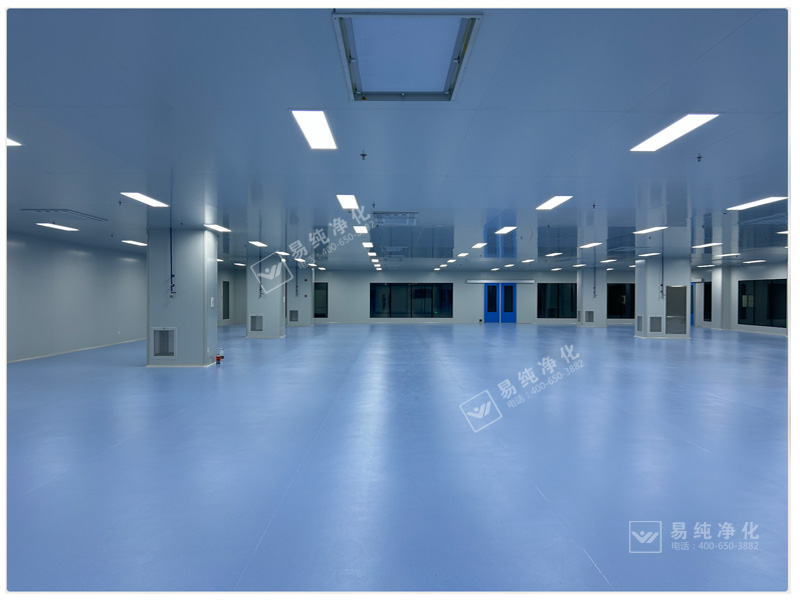

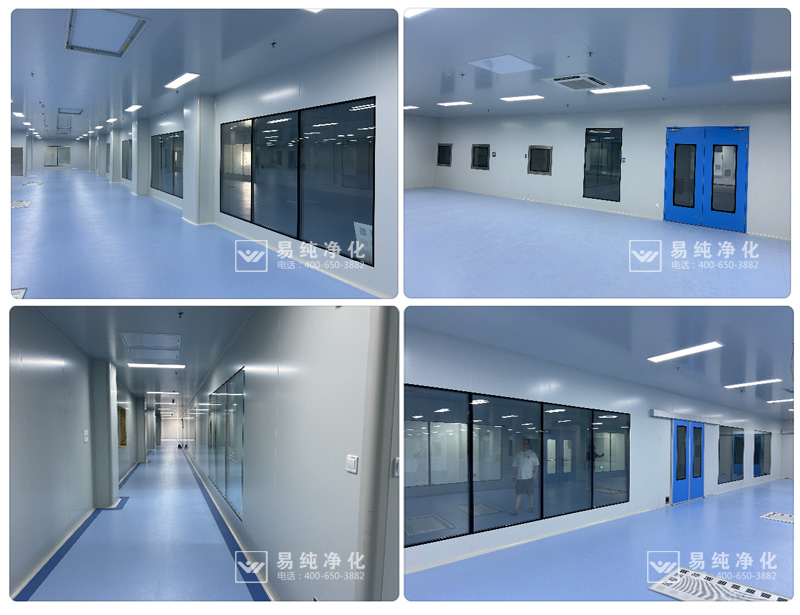

三、Main clean room section (100000 level purification)

四、Main clean room section (10000 level purification)

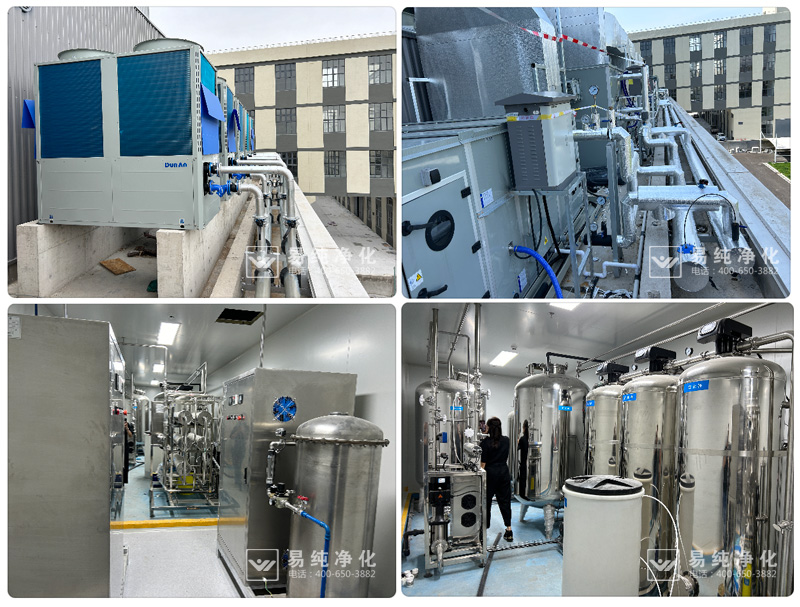

五、Air conditioning equipment and purified water unit
